x-net® C21 wall system plaster system
Enjoy greater flexibility.
Optimal panel heating/surface cooling for plastered wall surfaces. Panel heating is definitely the right choice when the priority is to keep system temperatures low while ensuring the optimum level of comfort in living areas or rooms that serve a similar purpose. Depending on the situation, wall heating is a great alternative or an ideal supplement to underfloor heating. It can be used when the floor coverings have a high level of thermal resistance (e.g. in the case of wooden flooring), if the existing floor coverings are to be retained during refurbishment, or if – for example – the underfloor heating in the bathroom is not powerful enough.
The x-net C21 wall heating plaster system is the perfect panel heating/surface cooling solution for rooms with plastered walls. The normal types of plaster are: gypsum, lime, lime-gypsum, gypsum-cement or cement-based plaster as well as clay plaster.
Advantages
x-net C21 wall system plaster system
- Radiant heat
- Low flow temperatures
- Minimal pipe covering ensures a quick response
- Can be easily combined with underfloor heating
- Heating and cooling
- The pipe dimension of 14 x 2 mm means that wall areas measuring up to 10 m² can be occupied by an individual heating circuit
- Reliable venting due to the pipe dimension of 14 x 2 mm
- Single connection or connection to the heating circuit manifold in the Tichelmann system
- Easy-to-handle MKV composite pipe that is 100 % oxygen diffusion-proof
- Pipe run of the fully installed wall heating can be made visible with x-net thermofoil
- Universally adaptable to wall areas of any shape
- Structural thickness of only approx. 25 mm from the unfinished solid wall to the plaster surface (depending on how flat the unfinished solid wall is and on the plaster used)
- Suitable for all usual plaster types
x-net C21 wall heating plaster system
x-net MKV composite pipe
x-net wall heating connection
Accessories
Documents
Product video
For new and old buildings. Comfortable heat from the wall delivered in no time.
- The pipe dimension of 14 x 2.0 mm means that wall areas measuring up to 10 m² can be occupied by an individual heating circuit
- Reliable venting due to the pipe dimension of 14 x 2.0 mm
- Single connection or connection to the heating circuit manifold in the Tichelmann system
- Easy-to-handle MKV composite pipe that is 100 % oxygen diffusion-proof
- Universally adaptable to wall areas of any shape
- Structure thickness of only approx. 25 mm from the unfinished solid wall to the plaster surface

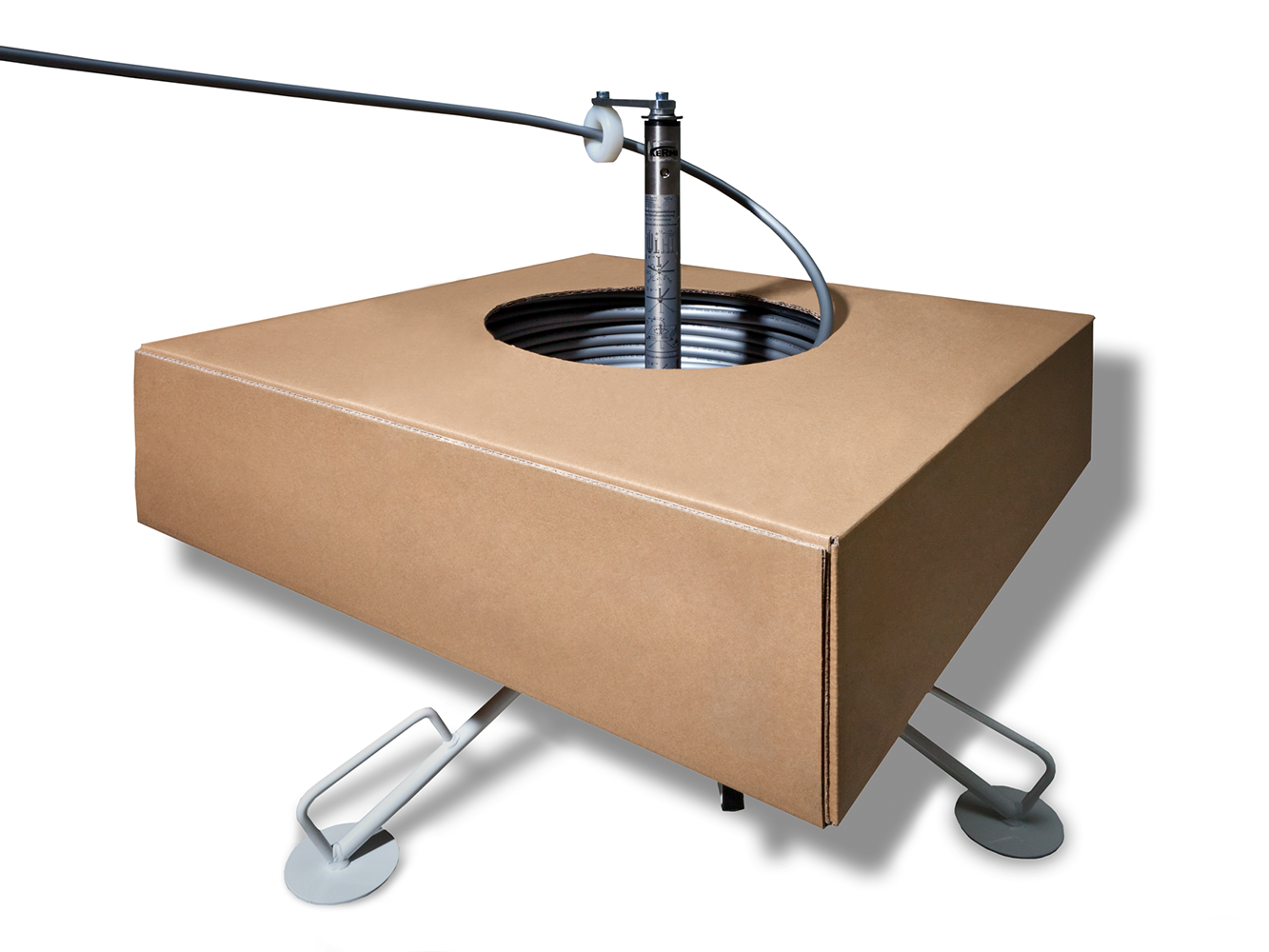

x-net unrolling unit
Lay your ventilation and underfloor heating pipes faster, smarter, and more effectively. The handy unroller for both types of pipe!
- Reduces installation work and helps keep the construction site tidy
- Ventilation and underfloor heating pipes can be laid by a single worker
- No tension or twisting during unrolling
- Can be assembled and disassembled in just a few simple steps without the need for tools
