x-net® C16 clip system

Exceptional underfloor heating – fast, robust, and suitable for universal use on any substrate.

Kermi x-net C16 clip system – underfloor heating for wet screed, particularly liquid screed.

Underfloor heating for wet screed, particularly liquid screed. With the introduction of the x-net C16 clip system, Kermi now offers a unique underfloor heating system that is capable of meeting all requirements. The x-net C16 clip system is independent of the floor insulation, can be installed at record speed, and is exceptionally sturdy.

The system provides key benefits when underfloor heating is being installed in conjunction with liquid screed, in situations that involve problematic substrates – such as soft mineral wool insulation – or whenever pipes are being installed on unfinished flooring.

Highlights
System components
Documents & service

Advantages

x-net C16 clip system

Heating and cooling

Cold water extracts heat from the floor, thereby cooling the room evenly – a real relief in the summer. The cooling function is not only vastly superior to a conventional air conditioning system because of the lack of draughts but also because it saves on expensive electrical energy

Unbeatably fast installation

  • Panels can be laid without having to match them precisely to the room geometry
  • Easy panel cutting
  • Lightning-fast pipe anchoring

Exceptionally robust pipe fixing

  • Insensitive to impacts
  • Clip is very firmly anchored in the panel
  • Virtually no vulnerable contact surface with the x-net C16 clip

Maximum security during the entire shell construction phase

  • Film covering protected by the x-net C16 clip panel
  • No penetration of the underside of the panel by x-net C16 clips
  • Screed weight reliably presses the pipes down through the cohesive panel surface

Suitable for universal use on all substrates

  • Can be used on mineral wool insulation when high sound insulation requirements apply
  • Can be used on EPS insulation with a high foam density when floors are subjected to heavy foot traffic
  • Can be used on PUR insulation or vacuum insulation, or without insulating

The problem solver for refurbishment projects

  • Sturdy solution for all-over coverage of less than ideal substrates
  • Low floor construction heights can be achieved

Very good suitability for liquid screed

  • Heating technology tested according to DIN EN 1264 and DIN Certco-certified

Certified and sustainable

  • Heating technology tested according to DIN EN 1264 and DIN CERTCO certified
  • Free from CFCs and HBCD

Screed is 40 % thinner for rapid controllability

  • Low construction in the form of a verified special structure with pipe covering of just 20 mm
  • Very fast response time and maximum efficiency thanks to the lower storage mass
  • DIN CERTCO system test

x-net controls

Further information about the x-net controls from Kermi

Find out more
Kermi x-net connect system – GEG-compliant underfloor heating in apartment hallways with increased impact sound protection.

x-net connect

Further information about the x-net connect system

Discover more

x-net C16 clip panel

The Kermi x-net C16 clip panel has a hollow-chamber structure, which ensures a completely secure and firm grip.

The x-net C16 clip panel has a hollow-chamber structure, with the design ensuring that the x-net C16 clip has a completely secure and firm grip within the internal structure.

The Kermi x-net C16 clip panel is easy to cut using the x-net cutter knife.

Cutting with the x-net cutter knife is remarkably easy. It effortlessly produces clean, blunt edges without leaving any debris.

The printed marks on the Kermi x-net C16 clip panel indicate the cutting grid and pipe installation grid.

Printed marks on the panels indicate the cutting grid (+) and pipe installation grid (---). Cutting along the cutting grid always produces a continuous installation grid whatever the combination of panel edges.

The taped connection of the x-net C16 clip panel is extremely robust.

The taped connection of the x-net C16 clip panel is extremely durable, leak-tight (particularly if using liquid screed), and does not depend on the panel shape or arrangement.

Leftover pieces of the Kermi x-net C16 clip panel are recyclable and easy to use.

Leftover pieces are recyclable and easy to use. As a result, there is almost no waste when installing x-net C16 clip panels.

The Kermi x-net C16 clip panels are resistant to bending and unbreakable.

The x-net C16 clip panels are resistant to bending and unbreakable. Maximum safety and security are therefore ensured even on problematic substrates.

x-net 5-layer PE-Xc pipe

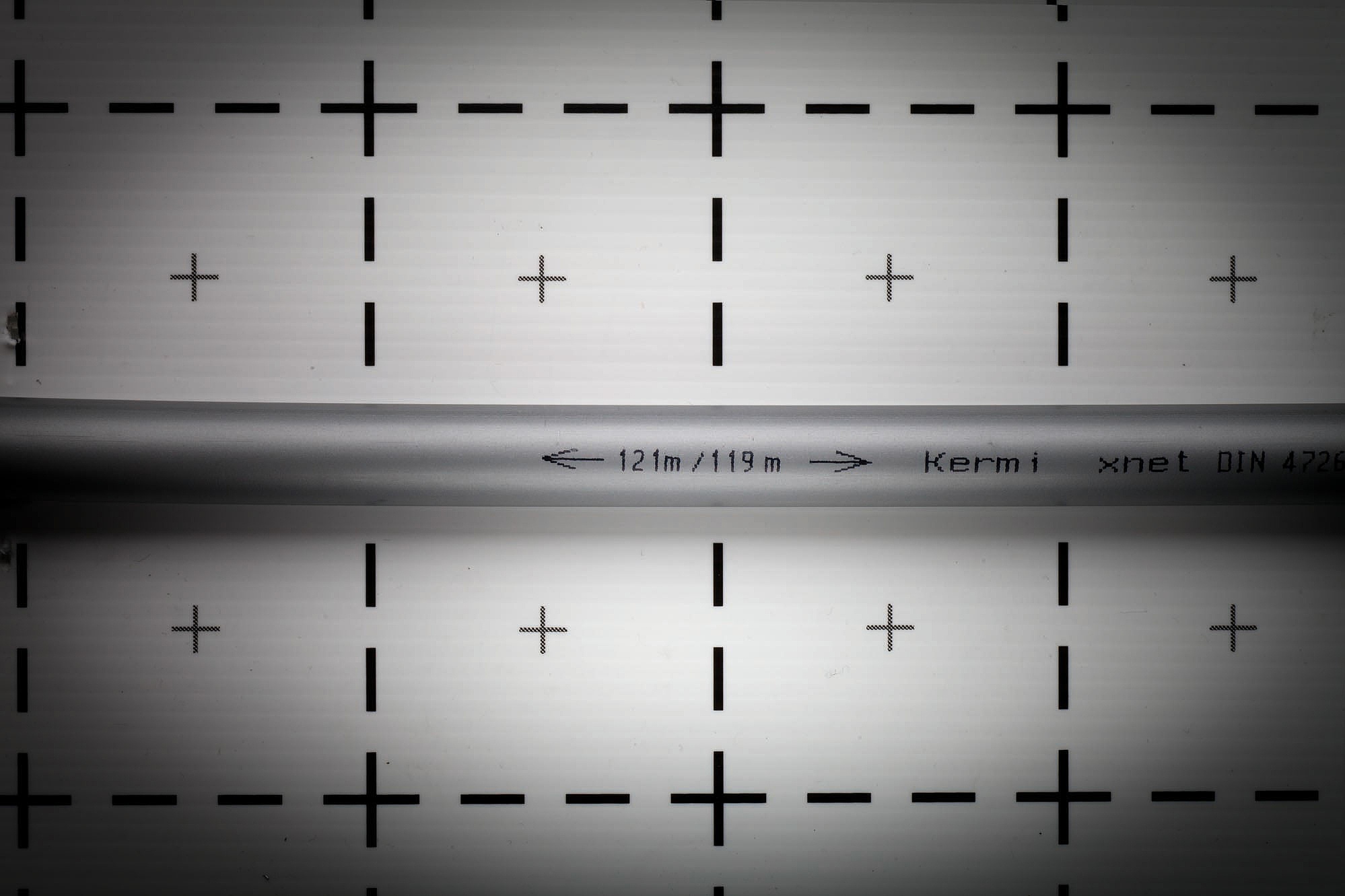

Kermi x-net 5-layer PE-Xc pipes have marks printed on them to indicate the remaining length and pipe length already used, thereby ensuring optimal utilisation of pipe coils.

Printed marks on the pipe indicate the remaining length and pipe length already used, allowing optimal utilisation of pipe coils.

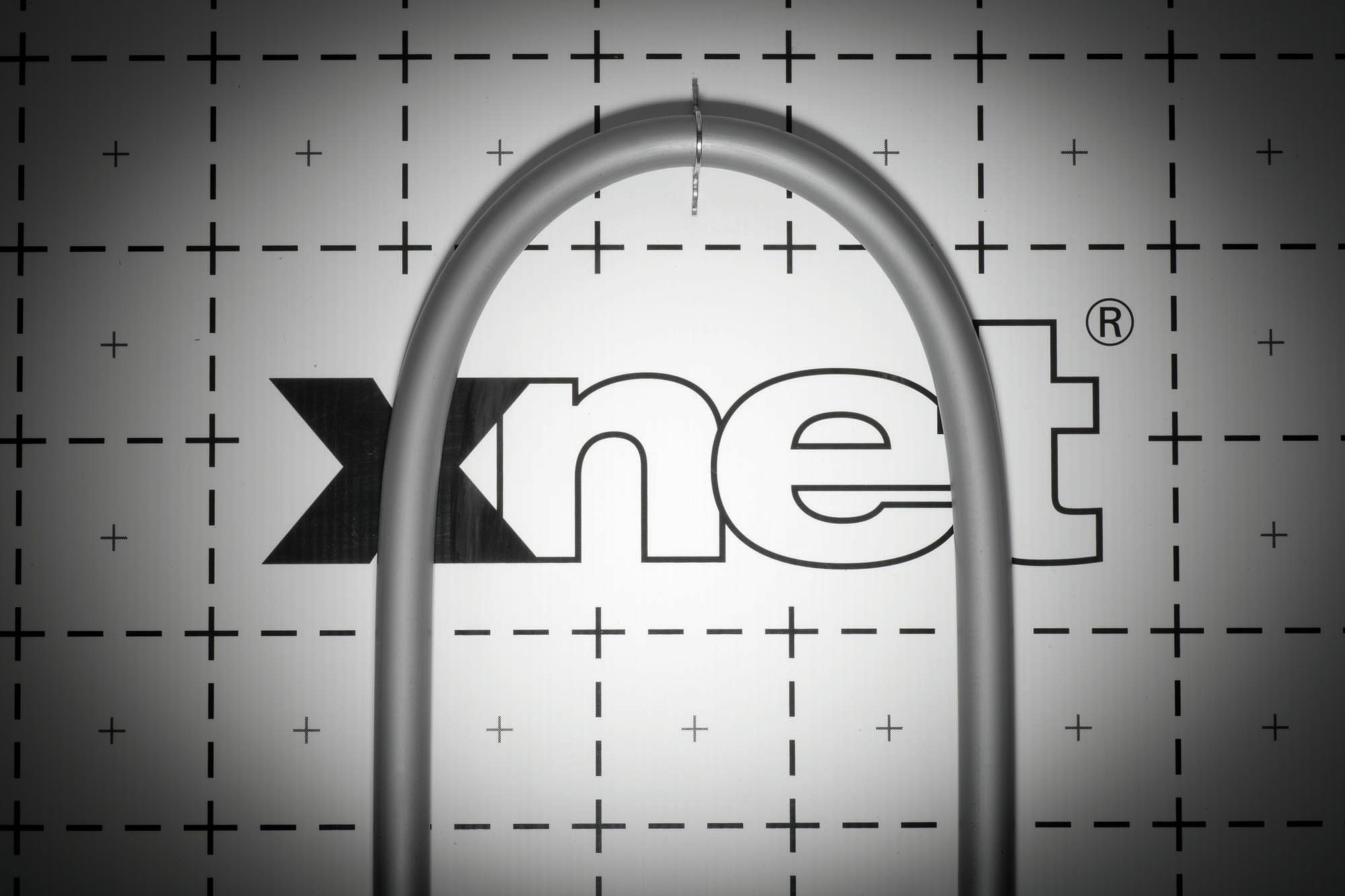

Because of their high level of flexibility, the Kermi x-net 5-layer PE-Xc pipes allow tight bending radii while ensuring low restoring forces.

The high flexibility allows tight bending radii and reduces the restoring forces in pipe bends.

Kermi x-net 5-layer PE-Xc pipes and pipe connectors tested according to DIN 4726 and DIN EN ISO 15875.

Pipes and pipe connectors according to DIN 4726 and DIN EN ISO 15875 are tested and monitored regularly by an accredited independent testing institute.

x-net C16 clip

The specially developed Kermi x-net C16 clip fits snugly on the pipe and so there is no vulnerable contact surface.

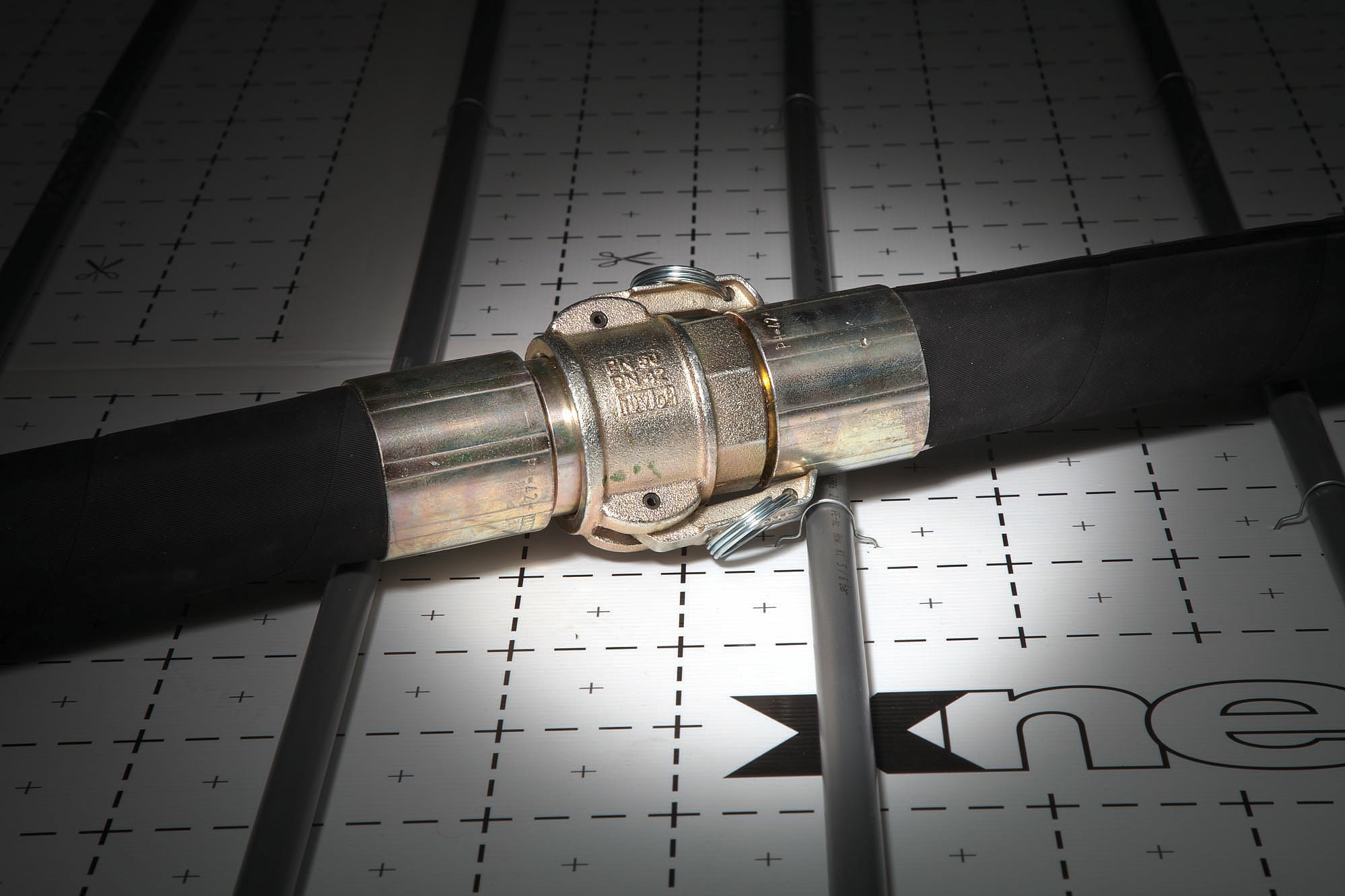

The specially developed x-net C16 clip fits snugly on the pipe and so there is no vulnerable contact surface e.g. for forces to be exerted by the screed hose or when the installation surface is walked on.

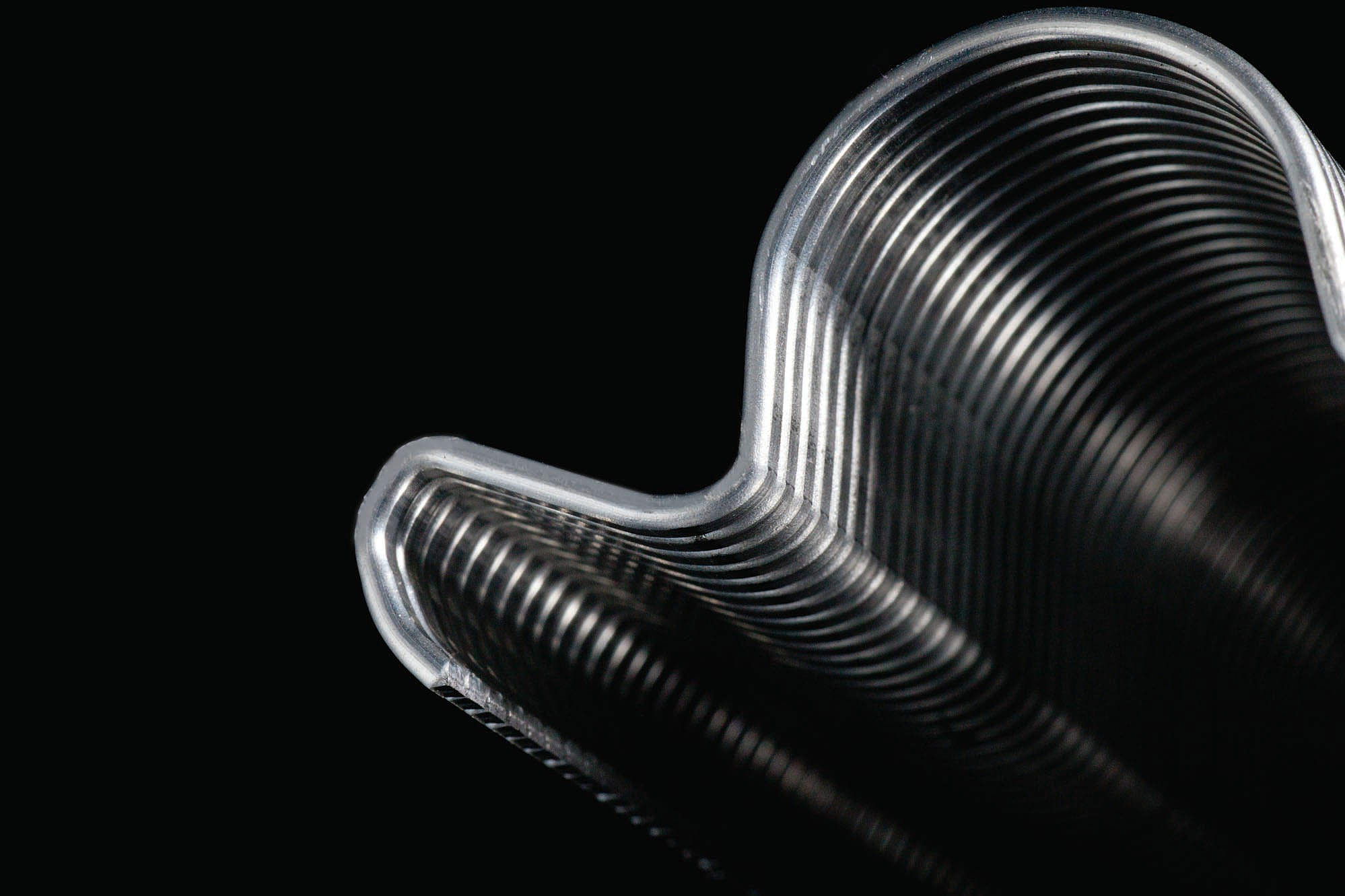

Kermi x-net C16 clips are supplied in magazines.

x-net C16 clips are supplied in magazines of 50. The high bending and tear resistance of the material make the clip exceptionally durable.

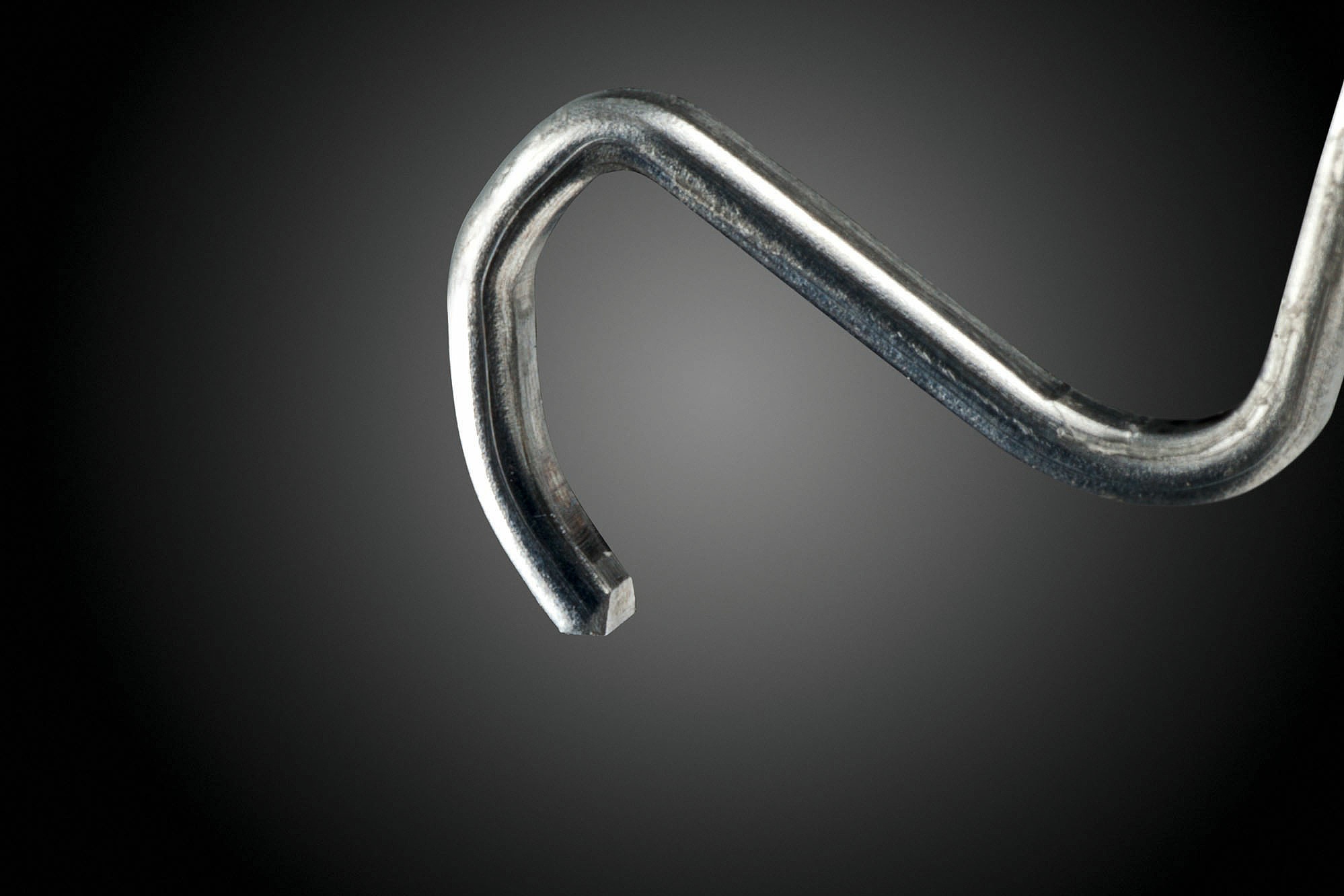

Kermi x-net C16 clips have rounded longitudinal edges and specially formed ends.

x-net C16 clips have rounded longitudinal edges and specially formed ends. This ensures maximum safety and security even under harsh building site conditions.

x-net C16 clip former

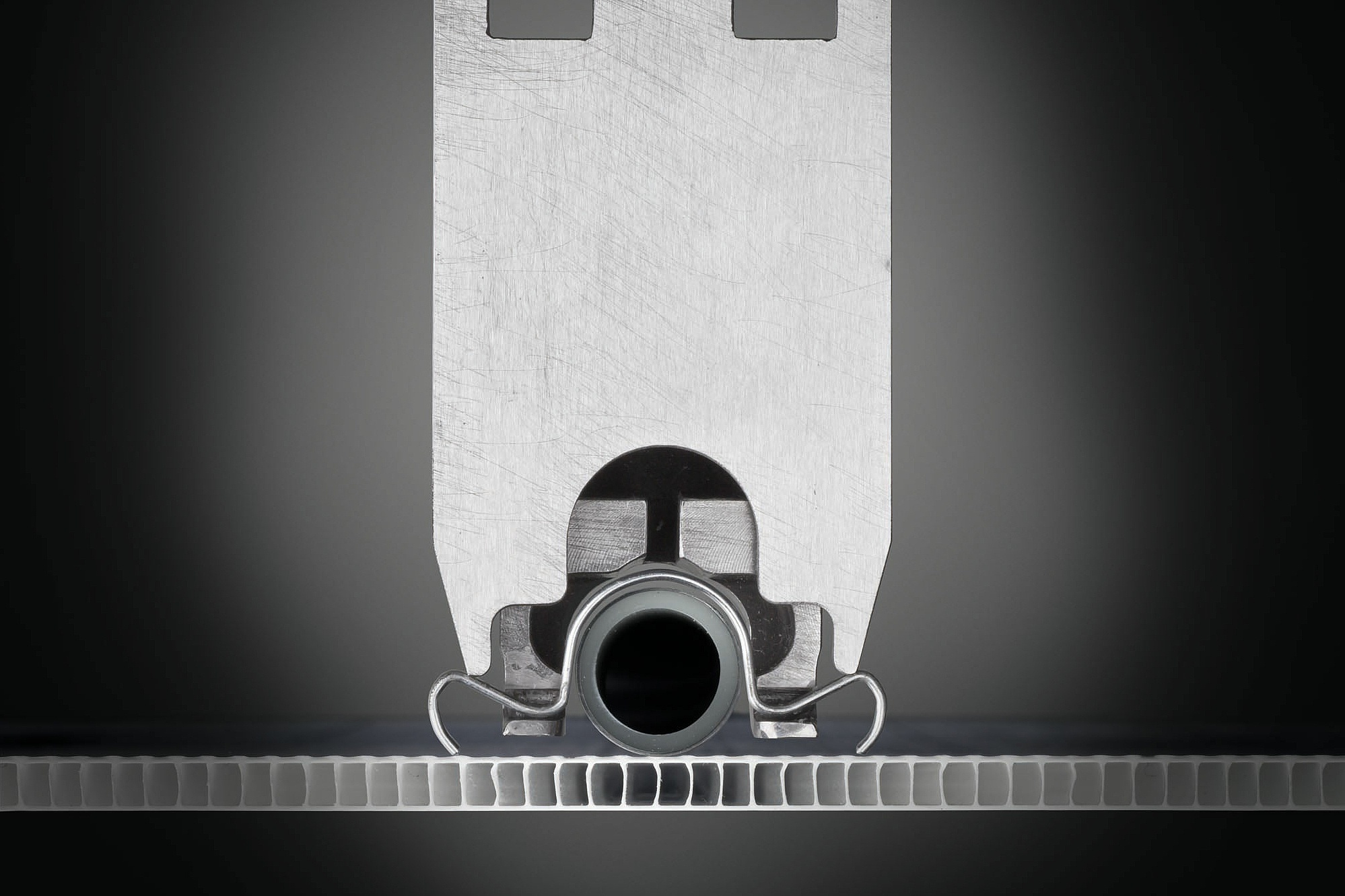

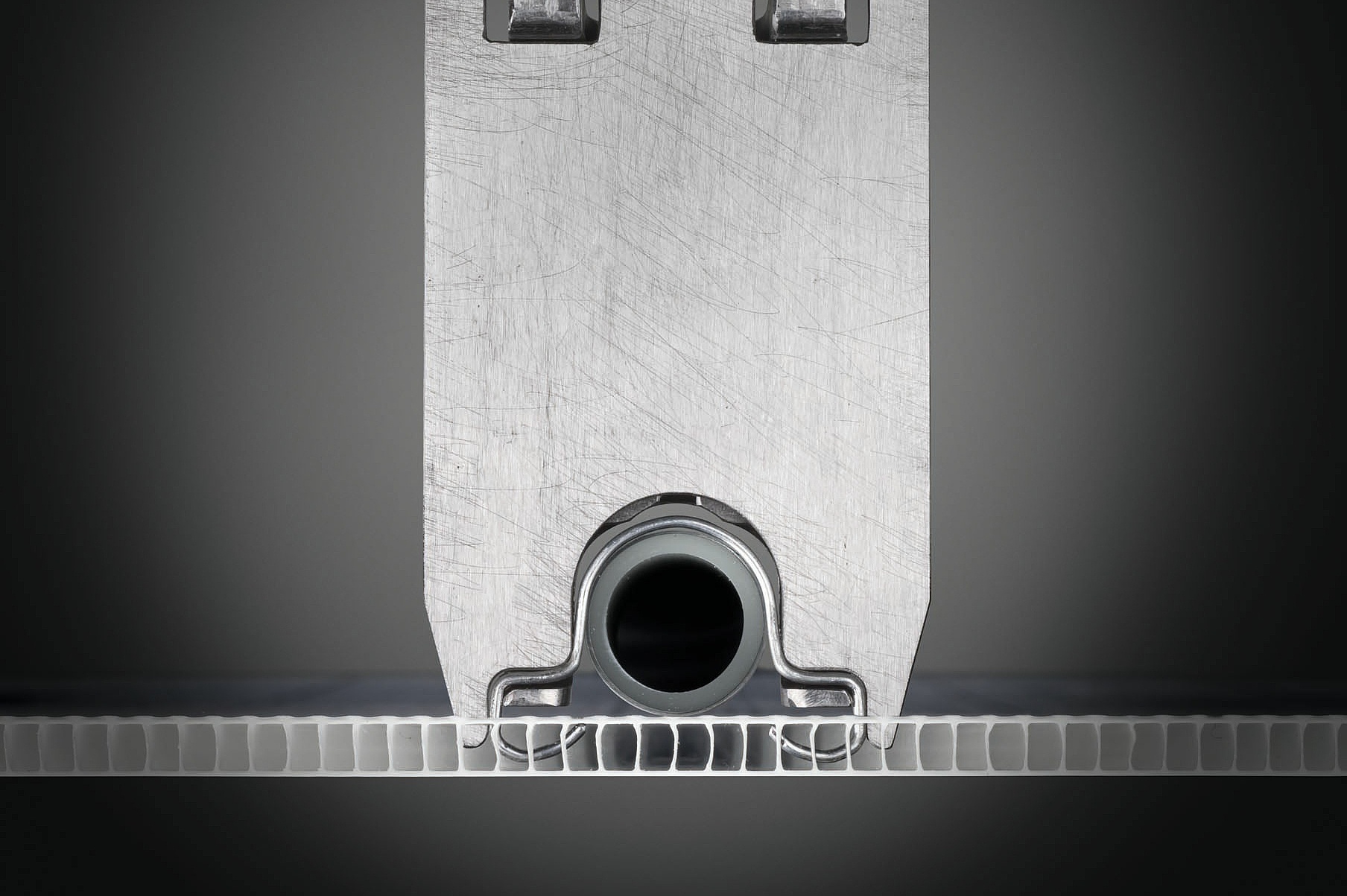

The clip is shaped using the Kermi x-net C16 clip former, which ensures that the clip is securely anchored.

The clip is shaped using the x-net C16 clip former, ensuring that the clip is anchored securely in the panel’s internal structure without piercing the underside. The cover film underneath remains protected.

The integrated mechanics ensure that clip forming with the Kermi x-net C16 clip former is always consistent.

The integrated mechanics ensure consistent clip forming regardless of how pliant the substrate is.

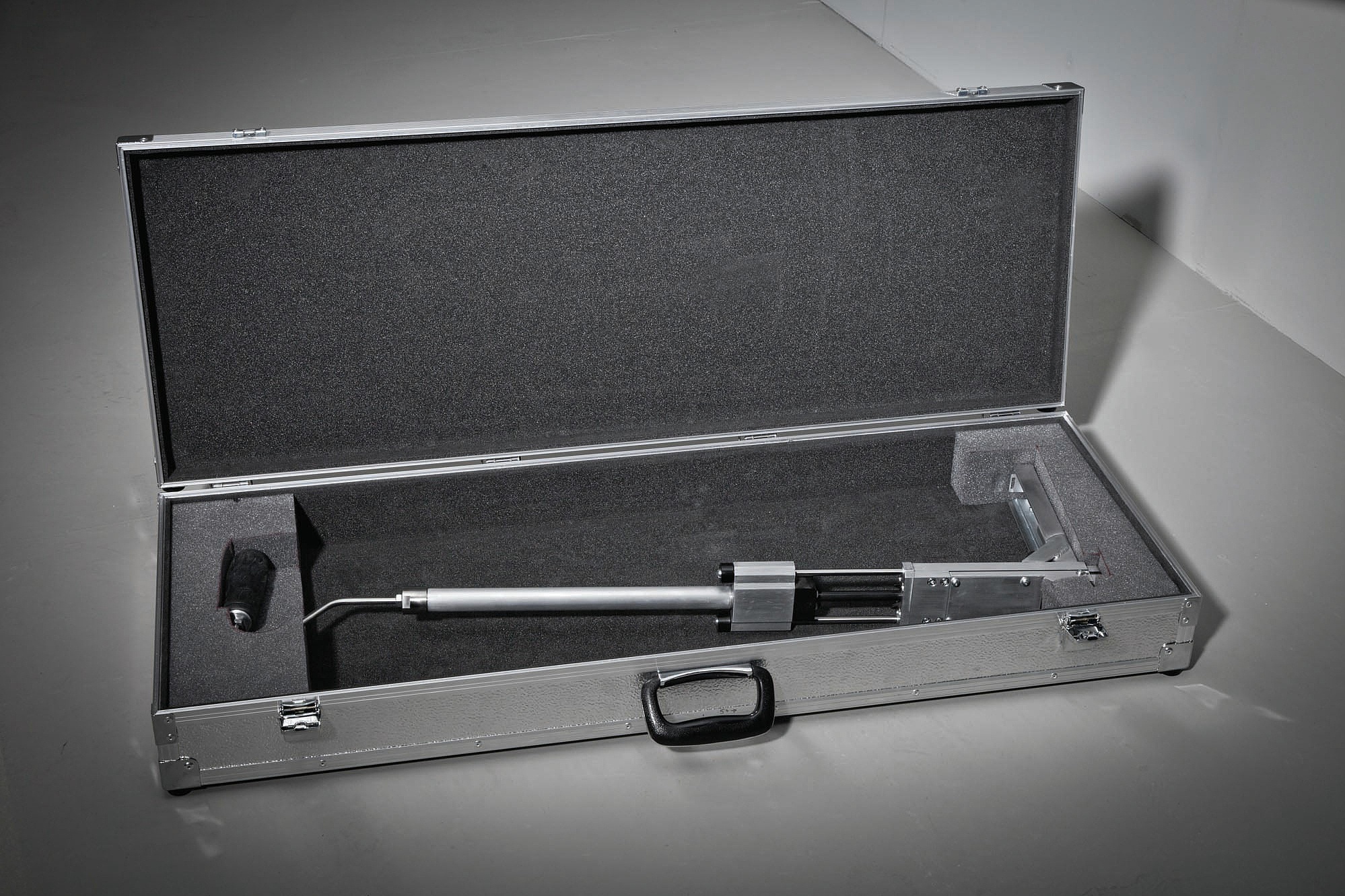

Carry case for Kermi x-net C16 clip former

A sturdy carry case is included with delivery. This also contains the documents required for return consignment. This Kermi service is provided to the installer free of charge.

x-net C16 clip tape

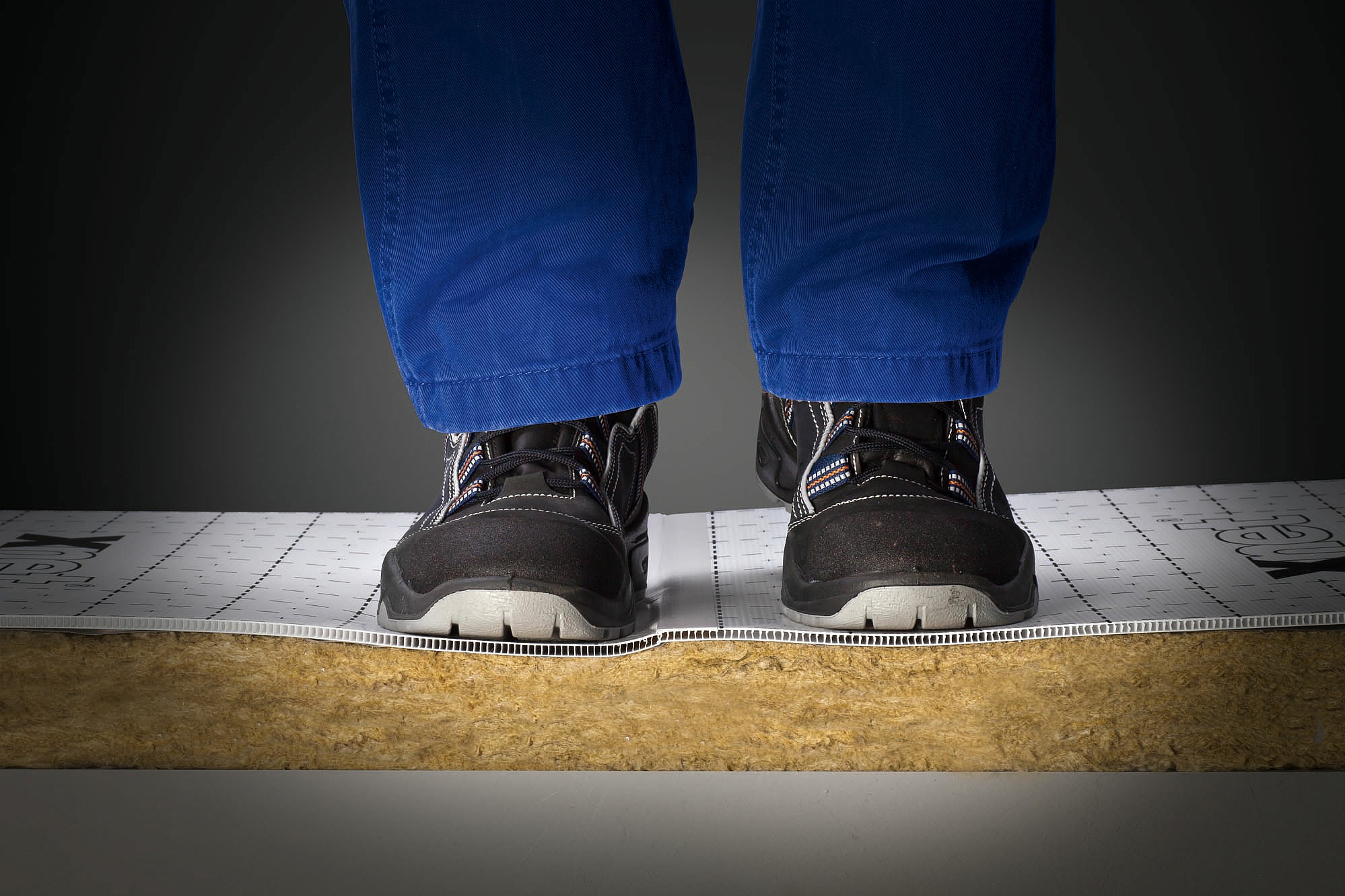

The Kermi x-net C16 clip tape creates a strong and reliably tight connection between the panels.

The x-net C16 clip tape creates a strong and reliably tight connection between the panels.

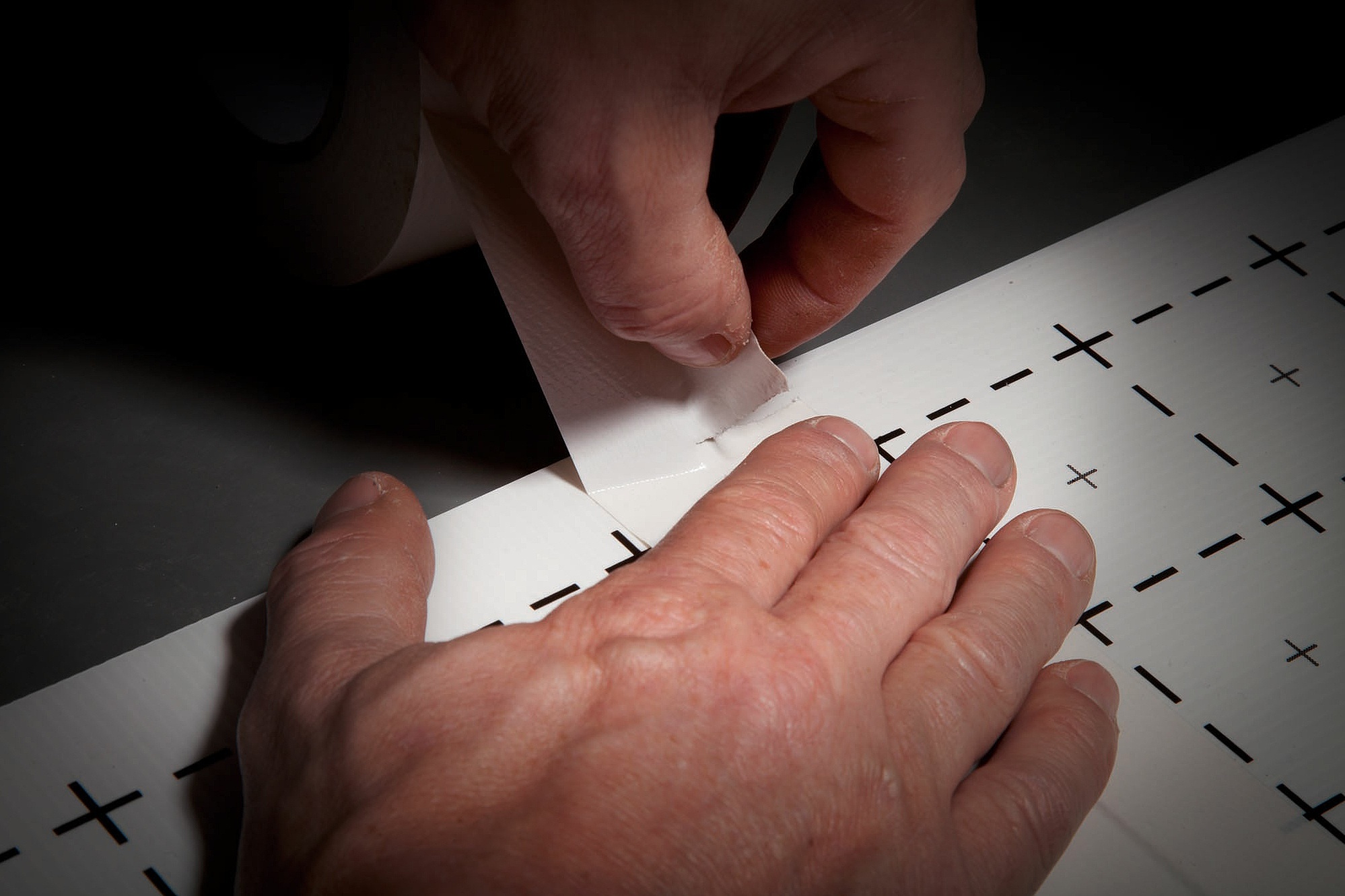

The Kermi x-net C16 clip tape can be easily torn off by hand.

No tools (tape dispensers) are needed for application. The x-net C16 clip tape can be easily torn off by hand.

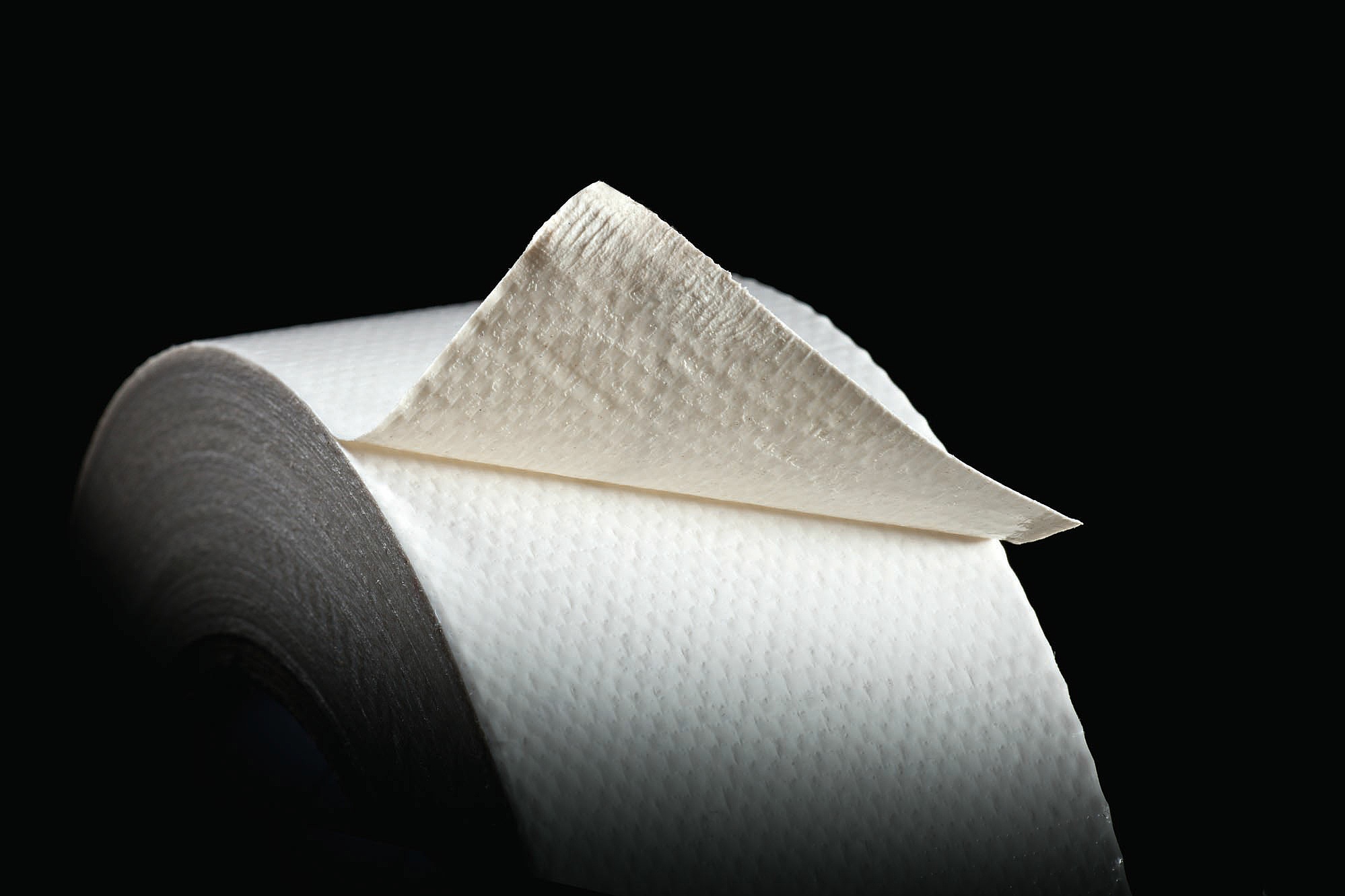

The Kermi x-net C16 clip tape provides large coverage (50 m per roll).

The x-net C16 clip tape provides large coverage (50 m per roll). The fabric insert ensures easy handling and high durability.

Accessories

x-net unrolling unit

Documents

Pricelist
Brochures
Datasheet
Instruction
Technical information
Declaration of performance

Product video

Exceptional underfloor heating – fast, robust, and suitable for universal use on any substrate

  • Unbeatably fast installation
  • Exceptionally robust pipe fixing
  • Maximum security during the entire shell construction phase
  • Suitable for universal use on all substrates
  • The problem solver for refurbishment projects

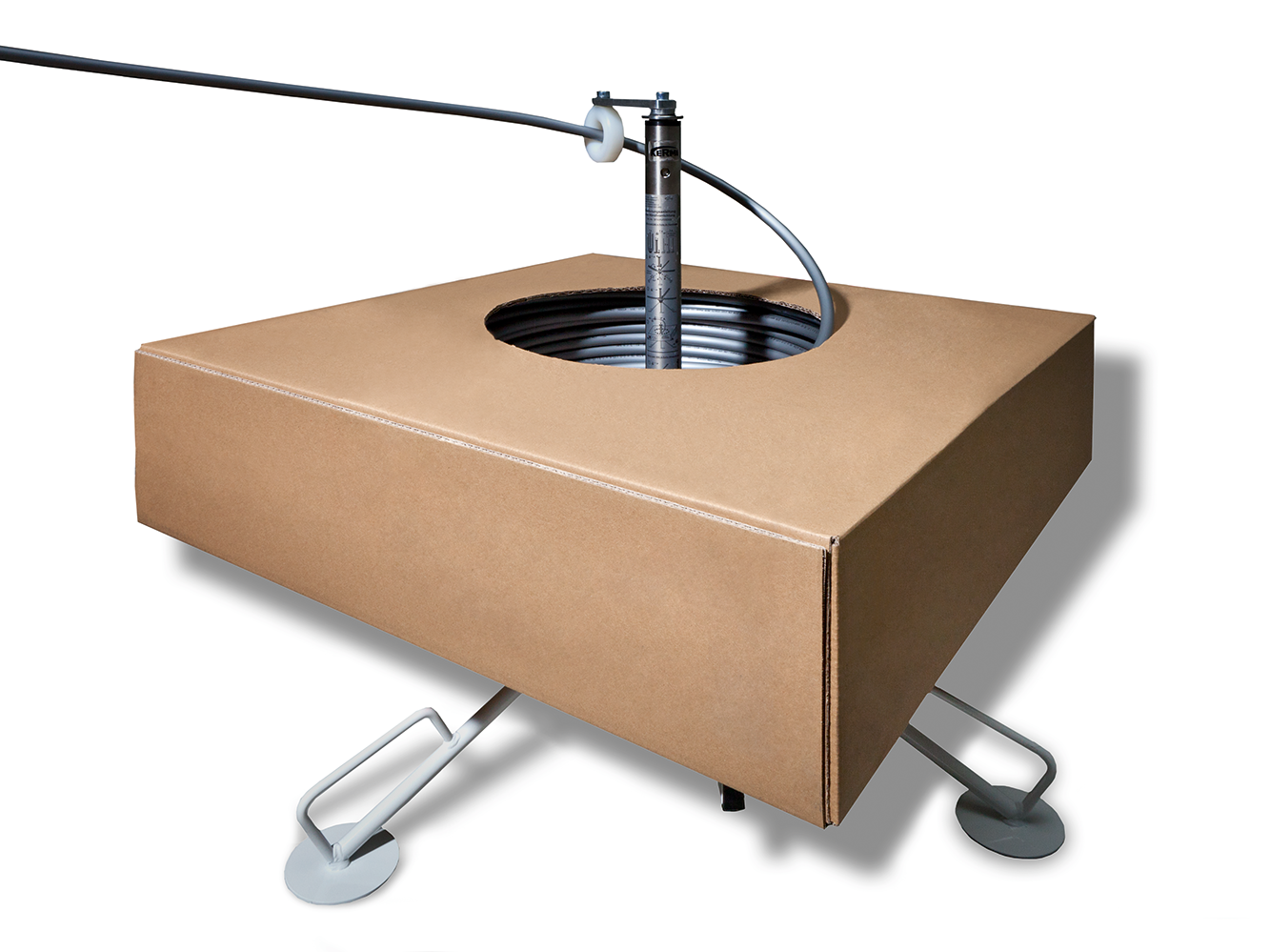

x-net unrolling unit

Lay your ventilation and underfloor heating pipes faster, smarter, and more effectively. The handy unroller for both types of pipe!

  • Reduces installation work and helps keep the construction site tidy
  • Ventilation and underfloor heating pipes can be laid by a single worker
  • No tension or twisting during unrolling
  • Can be assembled and disassembled in just a few simple steps without the need for tools
