x-net® C13 dry system

Versatile and lightweight – underfloor heating primarily intended for renovations.

x-net® C13 dry system – underfloor heating for dry screed elements and wet screed.

Underfloor heating for dry screed elements and wet screed. In combination with dry screed elements, the x-net C13 dry system (pipes in the insulating layer) allows you to create really lightweight floor structures in next to no time. Even with wet screed, it is possible to achieve a low construction height and a lower weight per unit area than with conventional wet systems (pipes in the screed). The new, professional detailed solutions for routing pipes in the manifold connection area make x-net C13 even better at accommodating specific applications.

Highlights
System components
Documents & service

Advantages

x-net C13 dry system

For use with prefabricated (dry) screed

  • Short response time
  • Ideal for renovations
  • Low weight
  • No ingress of moisture
  • Low construction height

For use with wet screed

  • Heating and cooling
  • Lower weight than with classic underfloor heating systems
  • Low construction height

Easy handling

  • Rigid foam insulation made of polystyrene which can be easily cut with the x-net separating knife
  • Simple creation of additional pipe ducts with the x-net heat-cutter featuring Omega cutting tip
  • Snaking curves and three transverse pipe ducts in the head area for laying two heating circuits in one room
  • Ideal for one-person pipe laying

Perfect protection of the pipes during the shell construction phase

  • Additional surface stabilisation with x-net heat-conducting plates
  • High impact resistance due to closed structure of the surface
  • High pipe retention strength due to Ω contour of the x-net heat-conducting plate

x-net heat-conducting plate, steel or aluminium

  • Designated breaking points allow the length of the plates to be quickly adjusted without tools
  • Burr-free breaks
  • When the aluminium x-net heat-conducting plate is used:
    • Increased output of 30 % with the same flow temperature
    • Reduction in flow temperature of approx. 3 K with the same heat output, equating to energy savings of around 7 % with a heat pump

Certified and sustainable

  • Heating technology tested according to DIN EN 1264 and DIN CERTCO certified
  • Free from CFCs and HBCD

x-net controls

Further information about the x-net controls from Kermi

Find out more

x-net 25 mm drywall board

x-net C13 dry system – 25 mm drywall board

The three transverse pipe ducts in the head area allow two heating circuits to be installed in a room without having to create additional pipe ducts.

x-net C13 dry system – 25 mm drywall board

Any additional pipe ducts that may be required, e.g. in front of the manifold, can be created accurately and quickly using the x-net heat-cutter.

x-net C13 dry system – 25 mm drywall board

To help you position the x-net heat-conducting plates correctly, there are markings on the x-net 25 mm drywall board.

x-net heat-conducting plate

x-net C13 dry system – heat-conducting plate

30 % greater output compared to the x-net steel heat-conducting plate with the same flow temperature.

x-net C13 dry system – heat-conducting plate

Length of the x-net heat-conducting plates can be adjusted without tools by making a simple burr-free break at the pre-punched breaking points.

x-net C13 dry system – heat-conducting plate

The heat-conducting plate can be divided into three separate plates of different sizes (17.5 / 34.5 / 47 cm) for fast and flexible installation.

Routing of pipes in the manifold connection area

x-net C13 dry system – detailed solution for routing pipes in the manifold connection area

Pre-set distance between pipes and load distribution layer: This reduces the floor surface temperature in the manifold area despite the pipes being routed close to each other.

x-net C13 dry system – 25 mm drywall board

Pipe ducts can be created quickly and precisely using the x-net heat-cutter featuring the x-net Omega cutting tip, which was specially developed for the x-net 25 mm distribution plate. This results in reliable pipe anchoring with an extremely high pipe retention strength.

x-net C13 dry system – detailed solution for routing pipes in the manifold connection area

Omega pipe duct can be cut on site for reliable pipe anchoring with a preset distance between the pipe and load distribution layer.

x-net 5-layer PE-Xc pipe

Kermi x-net 5-layer PE-Xc pipes have marks printed on them to indicate the remaining length and pipe length already used, thereby ensuring optimal utilisation of pipe coils.

Printed marks on the pipe indicate the remaining length and pipe length already used, allowing optimal utilisation of pipe coils.

Because of their high level of flexibility, the Kermi x-net 5-layer PE-Xc pipes allow tight bending radii while ensuring low restoring forces.

The high flexibility allows tight bending radii and reduces the restoring forces in pipe bends.

Kermi x-net 5-layer PE-Xc pipes and pipe connectors tested according to DIN 4726 and DIN EN ISO 15875.

Pipes and pipe connectors according to DIN 4726 and DIN EN ISO 15875 are tested and monitored regularly by an accredited independent testing institute.

Accessories

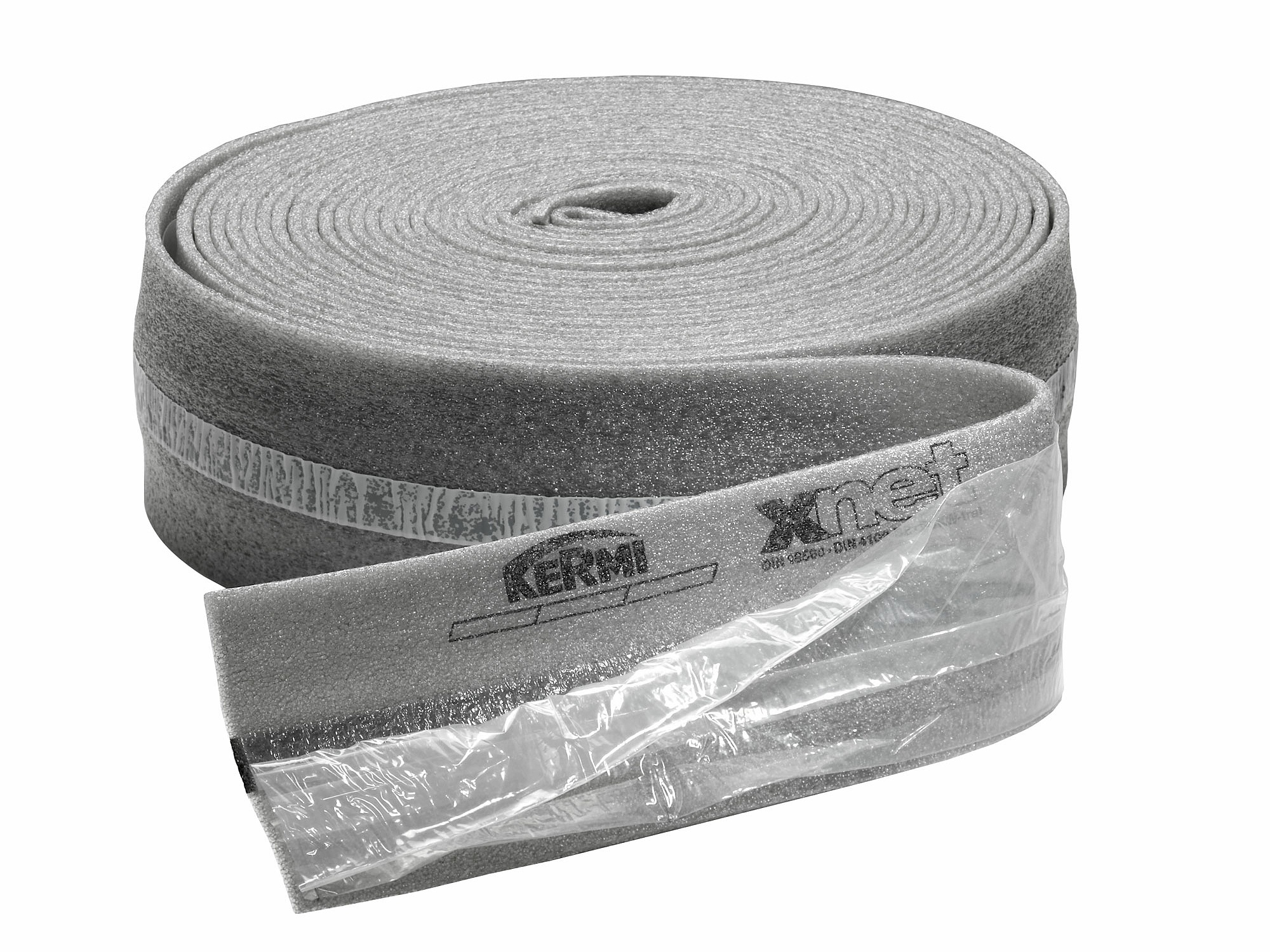

x-net edge insulating strips H 120 mm

Documents

Pricelist
Brochures
Datasheet
Instruction
Technical information
Declaration of performance

Product video

Versatile and lightweight – underfloor heating primarily intended for renovations

  • Low drywall board height of 25 mm
  • High impact resistance due to closed structure of the surface
  • Three transverse pipe ducts for connection pipes in the head area
  • Easy handling
  • Perfect protection of the pipes during the shell construction phase. High pipe retention strength thanks to Omega contour of the x-net heat-conducting plate

x-net unrolling unit

Lay your ventilation and underfloor heating pipes faster, smarter, and more effectively. The handy unroller for both types of pipe!

  • Reduces installation work and helps keep the construction site tidy
  • Ventilation and underfloor heating pipes can be laid by a single worker
  • No tension or twisting during unrolling
  • Can be assembled and disassembled in just a few simple steps without the need for tools
