x-net® C12 tacker system

The classic among underfloor heating systems – outstanding retention strength and cost-effectiveness.

Kermi x-net C12 tacker system – the classic underfloor heating system.

Underfloor heating for wet screed. The x-net tacker system features energy-saving and efficient low-temperature technology to ensure a cosy indoor climate throughout the year. It also offers great flexibility and installation freedom. Together, those benefits make it the ideal solution for controlling surface temperatures in residential and commercial areas. The optimum liquid screed properties and innovative features that we have developed in-house – such as our special x-net tacker technology – ensure really fast and efficient installation and pipe anchoring that is 100 % secure.

Highlights
System components
Documents & service

Advantages

x-net C12 tacker system

Heating and cooling

  • One system, two functions

Unbeatably fast laying of insulation

  • Large-sized tacker folding plates/rolls for laying insulation quickly
  • Minimal cutting scrap because panel leftovers are so easy to use

The right tacker insulation for every application

  • Impact sound insulation for apartment separation floors
  • Rigid foam insulation for high service loads
  • Various insulation thicknesses with both impact sound and rigid foam insulation versions

Sturdy, secure, and flexible

  • Highly tear-resistant anchor woven foil for high impact resistance and to ensure the x-net pipe anchor has an extremely high retention strength
  • Pipe anchoring near the surface with specially constructed x-net pipe anchors
  • Three pipe dimensions, one pipe anchor
    • x-net 5-layer pipe 14 x 2
    • x-net 5-layer pipe 16 x 2
    • x-net 5-layer pipe 17 x 2

Absolute freedom when laying the pipes

  • x-net tacker tool and x-net pipe anchors stored in magazines for quick and hassle-free pipe anchoring
  • Printed installation grid to facilitate pipe laying

Excellent suitability for liquid screed

  • With film overlap at the sides and self-adhesive strips for efficient liquid-screed-tight panel joints acc. to DIN 18560

Certified and sustainable

  • Heating technology tested according to DIN EN 1264 and DIN CERTCO certified
  • Free from CFCs and HBCD

x-net controls

Further information about the x-net controls from Kermi

Find out more
Kermi x-net connect system – GEG-compliant underfloor heating in apartment hallways with increased impact sound protection.

x-net connect

Further information about the x-net connect system

Discover more

Tacker insulation

Kermi x-net C12 tacker folding plate with a manageable 2 m² per plate.

x-net C12 tacker folding plate with a manageable 2 m² per plate. Perfect for small rooms.

Kermi x-net C12 tacker roll is available in various insulation thicknesses.

x-net C12 tacker roll in different insulation thicknesses with a coverage of up to 15 m². For use in large to medium-sized rooms.

Kermi x-net C12 tacker insulation can be easily cut to the required size.

Simple cutting of fitted pieces and minimal waste because leftover pieces can also be used. Screed-tight panel connections can be established using leftover pieces, without overlap and using x-net adhesive tape.

Kermi x-net C12 tacker insulation adhesive technology.

When using cement screed, it is sufficient to use the 3 cm wide overlap of the anchor woven foil – no gluing required.

Kermi x-net C12 tacker insulation made of highly tear-resistant woven fabric.

The laminated anchor woven foil covers the entire surface of the insulation. It consists of highly tear-resistant woven fabric with a PE overlay, which includes a printed 5.5 cm installation grid.

With their high retention strength, Kermi x-net C12 pipe anchors are truly impressive.

The impressive x-net C12 pipe anchors feature a high retention strength and have a rounded external contour for effectively deflecting external forces. Each pipe anchor has six flexible barbs, which expand under the film to form a large support surface. This reliably prevents the pipe anchor from being pulled out. The optimal interlocking of the pipe anchors under the film ensures that pipes are held securely close to the surface.

x-net 5-layer PE-Xc pipe

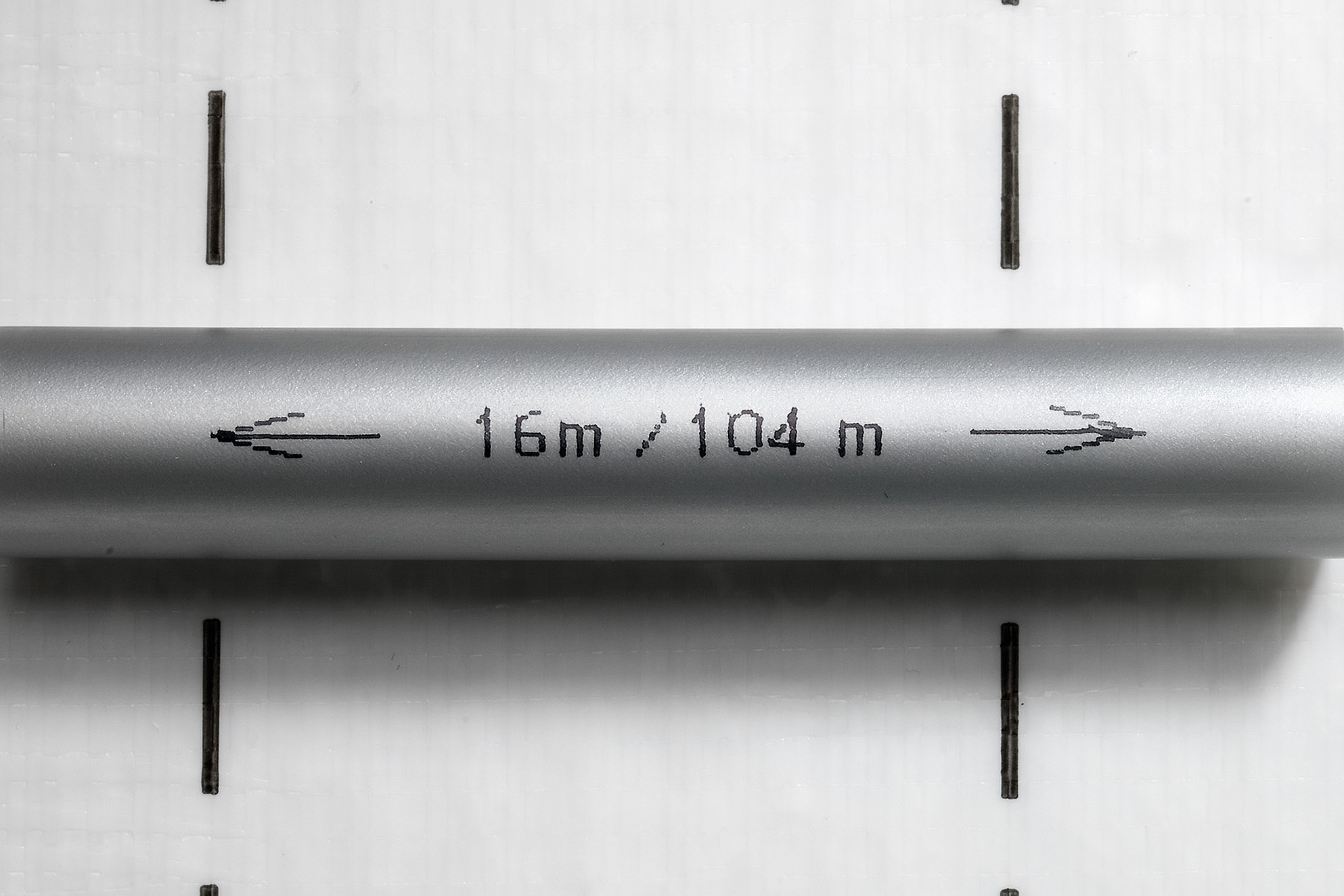

Printed marks on the pipe indicate the remaining length and pipe length already used, allowing optimal utilisation of pipe coils.

Because of their high level of flexibility, the Kermi x-net 5-layer PE-Xc pipes allow tight bending radii while ensuring low restoring forces.

The high flexibility allows tight bending radii and reduces the restoring forces in pipe bends.

Kermi x-net 5-layer PE-Xc pipes and pipe connectors tested according to DIN 4726 and DIN EN ISO 15875.

Pipes and pipe connectors according to DIN 4726 and DIN EN ISO 15875 are tested and monitored regularly by an accredited independent testing institute.

Accessories

x-net tacker tool
x-net edge insulating strips H 160 mm

Documents

Pricelist
Brochures
Datasheet
Instruction
Technical information
Declaration of performance

Product video

The classic among underfloor heating systems – outstanding retention strength and cost-effectiveness

  • Large-sized tacker folding plates/rolls for laying insulation quickly
  • Versions available with rigid foam insulation and with impact sound insulation
  • Highly tear-resistant anchor woven foil for high impact resistance and to ensure the x-net pipe anchor has an extremely high retention strength
  • Pipe anchoring near the surface with specially constructed x-net pipe anchors
  • Two pipe dimensions – one pipe anchor

x-net unrolling unit

Lay your ventilation and underfloor heating pipes faster, smarter, and more effectively. The handy unroller for both types of pipe!

  • Reduces installation work and helps keep the construction site tidy
  • Ventilation and underfloor heating pipes can be laid by a single worker
  • No tension or twisting during unrolling
  • Can be assembled and disassembled in just a few simple steps without the need for tools
