x-change® dynamic pro AW E

More efficient and sustainable. The modulating x-change dynamic pro AW E air/water heat pump is bound to impress thanks to its extremely efficient and virtually silent operation.

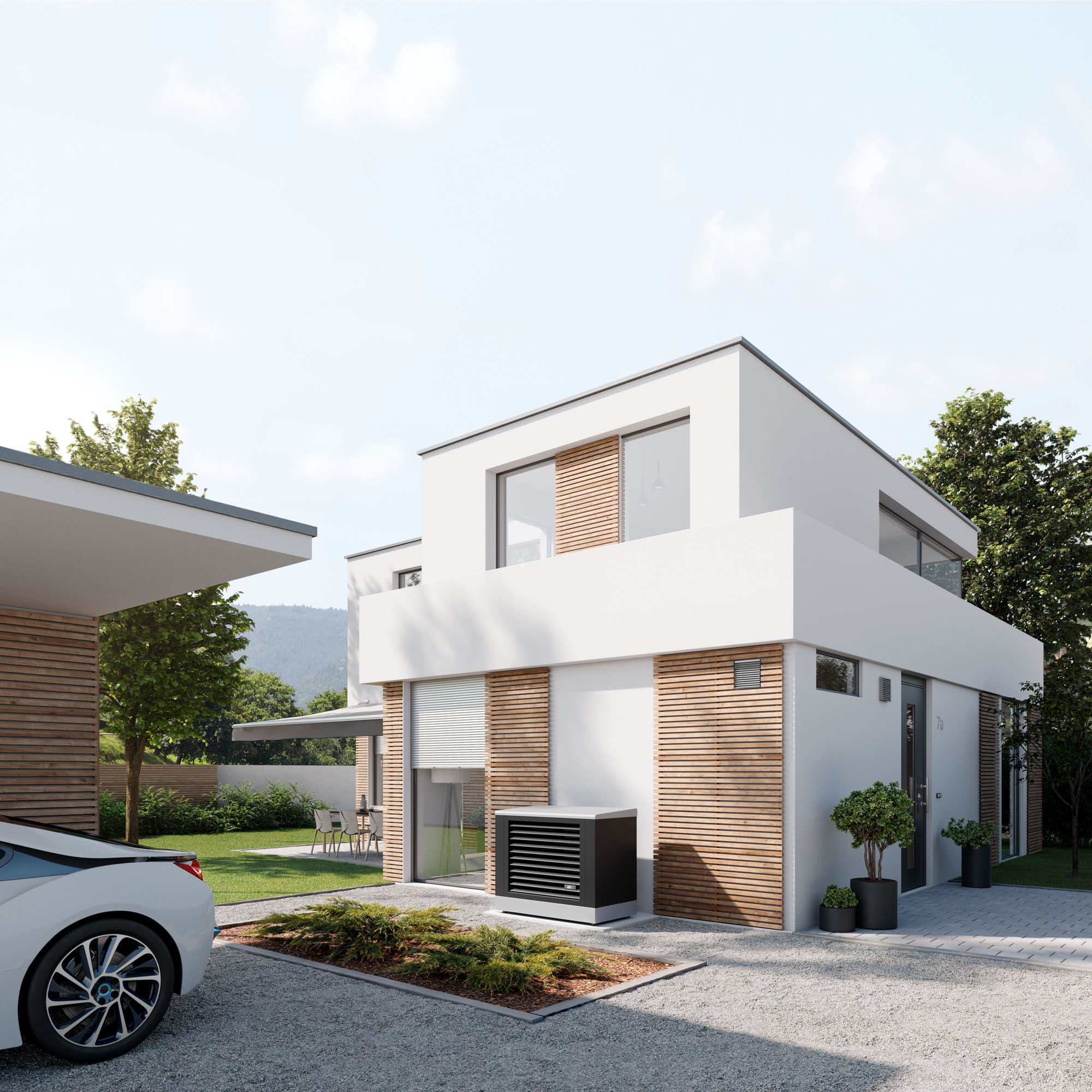

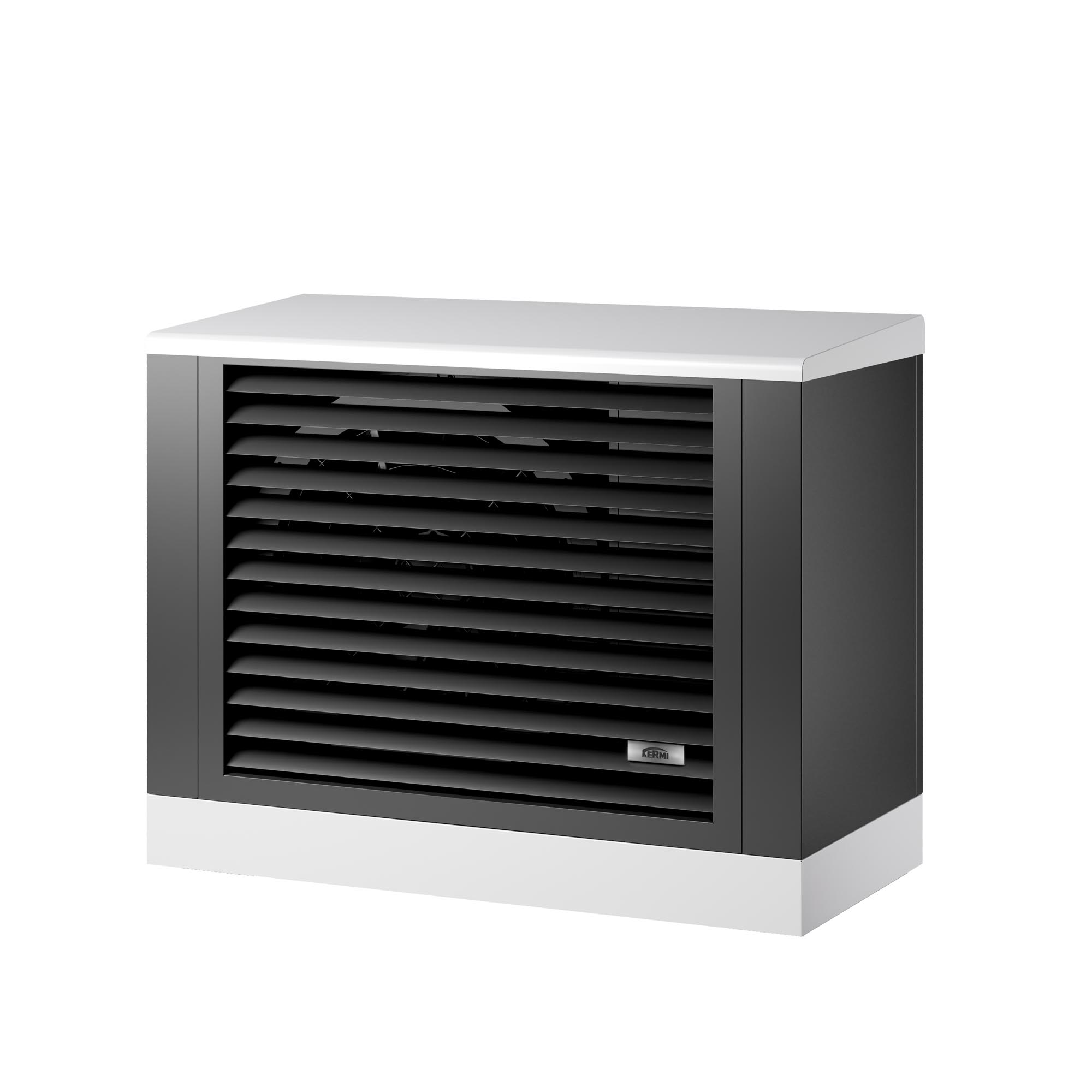

x-change dynamic pro AW E air/water heat pump for outdoor installation

This is made possible by the latest axial fan technology, which includes a whisper mode and a large modulation range for the compressor, fan, and charge pump. Together with the cooling circuit featuring multiple insulation and triple sound proofing, the high-quality housing with robust stainless steel cover ensures the lowest possible sound emissions. By reversing the process, the heat pump can modulate to provide cooling output. Operation is highly sustainable thanks to a new environmentally compatible coolant. For even greater sustainability, it can be combined with a solar panel system and electrical energy storage unit. Hybrid operation with other renewable energies, such as solar thermal energy or biomass, is also possible. The x-change dynamic pro air/water heat pump scores well with its outstanding efficiency, extremely low sound emissions, and state-of-the-art control technology. Installation effort is reduced to a minimum and a new small size has been introduced for energy-efficient new builds, perfectly rounding off the range of possible applications by catering for lower outputs.

Highlights
Technical data
Documents and service
Tools and apps

System benefits

x-change dynamic pro AW E air/water heat pump for outdoor installation
  • 3 output sizes with a heat output range (A-7/W35) of 3.5–19.0 kW

  • Up to three units can be connected in a cascade for large construction projects

  • With an active cooling function as standard

  • Extremely low operating costs thanks to COP up to 4.80 (A2/W35)

  • Power to Heat : intelligent use of excess solar-generated electricity

  • Extremely efficient and virtually silent operation thanks to a large vaporiser and modulation of the compressor, the fan, and the charge pump

  • Including the newest x-center pro control

  • Web or app-based remote control of the heat pump

  • Extremely simple installation thanks to integrated vibration decoupling, microbubble deaerator, and safety valve (2.5 bar)

  • Heat pump energy efficiency class A+++

For team players

The perfect addition

x-flair heat pump radiator

x-change dynamic pro AW E air/water heat pump for outdoor installation

The x-change heat pump

Guide

Sound level and sound insulation

With their exceptionally effective sound attenuation and vibration damping, our heat pumps are hardly any louder than a ticking alarm clock.

Own consumption

Reduce your electricity costs by combining a solar system and electrical energy storage unit with an x-change heat pump.

Heat pump & cooling

Provided that the necessary technical requirements are met, heat pumps can also be used to cool living spaces, regardless of whether they take the form of an air-to-water, brine-to-water, or water-to-water heat pump.

Heat pump with solar panels

It makes perfect sense to combine a heat pump with a solar panel system: Heat pumps need conventional electricity to operate – a solar panel system generates electricity from solar energy. And our x-change dynamic heat pumps have an integrated solar panel interface as standard.

Which heat pump should you choose?

Heat pumps can be used in large or small properties, detached houses, and blocks of flats – but deciding which one is right for your own construction or modernisation project primarily depends on the conditions in and around the building. There are a few basic details and criteria that can help you with the selection process.

Heat pump subsidies

New subsidy rates for heat pumps as of 2021! The most important information you need to know about the new subsidy programme.

Annual COP calculator

Here you can calculate the annual COP of Kermi heat pumps according to VDI 4650.
The annual COP is the basis on which subsidies are awarded under the various market incentive programmes.

What you need to know

Want to know more about x-change heat pumps?

Technical data

x-change dynamic pro AW E air/water heat pump for outdoor installation
  x-change dynamic pro ac 6 AW E x-change dynamic pro ac 10 AW E x-change dynamic pro ac 16 AW E
Energy source Air Air Air
Installation site Outside Outside Outside
Function Heating and cooling Heating and cooling Heating and cooling
Heat pump energy efficiency class at 35 °C/55 °C A+++ A+++ A+++
Heat output (kW) at A2/W35 Modulating 4.0–8.1 Modulating 4.9 –11.0 Modulating 7.0–19.0
COP1 A2/W35 4.66 4.80 4.68
Cooling output (kW) at A35/W18 4.5–8.0 4.5–11.0 8.4–17.0
Width x depth x height (mm) Max. 1270 x 680 x 1075 Max. 1430 x 680 x 1150 Max. 1510 x 680 x 1380
SG ready Yes Yes Yes
