Convectors with and without radiation shield

High design standards coupled with powerful heat output.

Small, compact, and bursting with energy. Kermi convectors are ideal for rooms with large areas of glass. With their high heat output, they form an invisible heat protection shield and prevent the stream of cold air spreading through the room. Whether curved, with one or more angles, or coupled – our convectors are extremely flexible in terms of their ability to adapt to the architectural environment. When combined with the appropriate accessories, they even become a bench or window sill. Once again, energy can be saved thanks to an invisible radiation shield that is integrated into the rear side of the convector, reducing heat loss on the glass surface by up to 80 %.

Highlights
Versions
Documents and service
Tools and apps

Compact, elegant thermal comfort.

Ideal in front of floor-to-ceiling window areas.

Kermi convectors – compact, elegant thermal comfort. Ideal in front of floor-to-ceiling window areas.

  • Compact and powerful

  • KNV version with integrated valve fitting

  • KSV/KSN versions with integrated radiation shield

  • Quick heating period

  • Even radiant heat

  • Special solutions for individual adaptation to the architecture

Impressions

Kermi KSV valve convectors. With integrated radiation shield.
Kermi KNV valve convector. With fully integrated valve fitting.
Kermi KKN compact convector. The compact standard version.
Kermi KKV compact valve convector. With integrated valve fitting.
Kermi KNN convector. Elegant thermal comfort in a highly compact package.
Curved, with one or more angles, coupled .... Kermi convectors can be adapted to virtually any property requirements.
Kermi KSN convector. With integrated radiation shield.
Kermi convectors – high design standards coupled with powerful heat output.
Kermi convectors – compact, elegant thermal comfort. Ideal in front of floor-to-ceiling window areas.
Kermi convectors can be adapted to virtually any property requirements.

The different variants of the Kermi convector range

Kermi KNV valve convector. With fully integrated valve fitting.

KNV valve convector

Kermi KNV valve convector. With fully integrated valve fitting.

Floor-to-ceiling windows and large areas of exterior glazing require special radiator solutions. Kermi valve convectors are made for this purpose. Elegant, compact, and with powerful heat output – for equally impressive yet unobtrusive integration into the interior design concept. This is where high design standards meet optimal heat output control. The integrated valve fitting eliminates the need for the flow and return next to the convector. This does not just have a positive impact on the appearance but also on the installation time.

Kermi KSV valve convectors. With integrated radiation shield.

KSV valve convector with radiation shield

Kermi KSV valve convectors. With integrated radiation shield.

The Heat Insulation Ordinance stipulates the use of thermal insulation to prevent heat loss from external window surfaces and this has also been integrated into type KSC in an elegant and invisible way. Developed using a special process and installed on the rear side of the convector, it effectively prevents radiation towards the window surface, reducing heat loss by up to 80 per cent.

Kermi KKV compact valve convector. With integrated valve fitting.

KKV compact valve convector

Kermi KKV compact valve convector. With integrated valve fitting.

The range of applications for compact convectors in modern architecture is growing all the time. Accordingly, the same level of variety is found in the Kermi product range, e.g. with regard to the type of valve. The different heights and lengths offer plenty of planning scope. On top of all that, it is easy to fit but is extremely lightweight. Another benefit is that very little water gets taken in, thereby ensuring an extremely fast response time.

Kermi KNN convector. Elegant thermal comfort in a highly compact package.

KNN convector

Kermi KNN convector. Elegant thermal comfort in a highly compact package.

Extremely shallow in height, colossal in heat output, Kermi convectors are the ideal heat distribution solution, particularly in rooms with large-surface exterior glazing such as panoramic windows, display windows, or conservatories. Short heating period, high control sensitivity. Delivered turnkey in superb quality, complete with ready-to-install protective packaging. Optionally with or without decorative cover. And easy to install without any problems with the universal connector.

Kermi KSN convector. With integrated radiation shield.

KSN convector with radiation shield

Kermi KSN convector. With integrated radiation shield.

The Heat Insulation Ordinance stipulates the use of thermal insulation to prevent heat loss from external window surfaces and this has been integrated here in an invisible way.

Developed using a special process and installed on the rear side of the convector, it effectively prevents radiation towards the window surface, reducing heat loss by up to 80 per cent.

Kermi KKN compact convector. The compact standard version.

KKN compact convector

Kermi KKN compact convector. The compact standard version.

The compact standard version offers plenty of scope for planning with its different heights and lengths. On top of all that, it is easy to fit but is extremely lightweight. Kermi compact convectors are delivered in white as standard, RAL 9016. Apart from that, the
Kermi colour concept offers a wide range of options for up-to-date, custom colour schemes. A paint finish in any colour of your choice can also be provided for an additional charge.

Technical information

Technical information (KNN, KNV, KSN, KSV)

Heights 70–280 mm
Lengths 500–6000 mm
Depths 72–316 mm
Heat output
75/65–20 °C		 88–8800 watts



Technical information (KKN, KKV)

Heights 100–250 mm
Lengths 600–3000 mm
Depths 100–260 mm
Heat output
75/65–20 °C		 301–6630 mm



Special solutions

Curved, with one or more angles, coupled... Kermi convectors can be adapted to virtually any property requirements.

Their ability to blend perfectly into any room is one of the key strengths of Kermi convectors –

whether they are in a curved shape, adapted to the wall radius with invisibly integrated thermal insulation, or designed as a cross-corner solution connected at right angles. Kermi also provides special solutions that are tailored exactly to individual needs and interior design requirements.

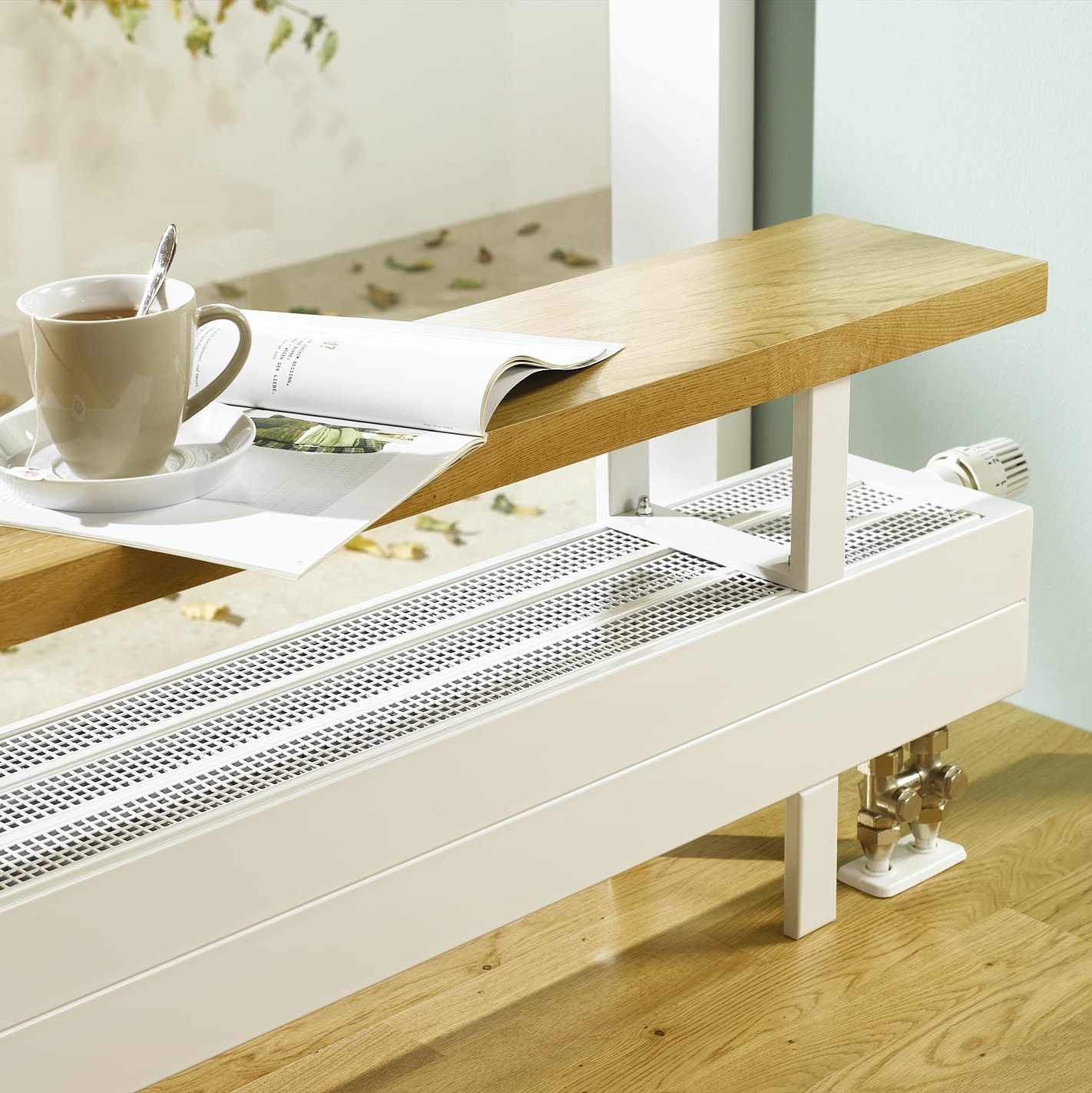

Want to combine a convector with a comfy seat? No problem! To enable this, Kermi offers two different property developer sets (seat not included) as part of its range. These can be retrofitted

Kermi special solutions for customisation:

  • Curved version or version with single or multiple angles
  • Coupled convectors with connection on alternating sides or the same side
  • Special hub distances for replacing DIN radiators
  • When combined with the appropriate accessories, they can be used as a bench or window sill
Kermi convectors can be adapted to virtually any property requirements.
Curved, with one or more angles, coupled .... Kermi convectors can be adapted to virtually any property requirements.
